CH/GZ1 钢制柱型散热器

CH/GZ1 钢制柱型散热器
CH/GZ1 steel coil exchanger

（现代简约 精致高贵）



产品特点：
　　矩形水室，热媒流量大，水阻低，热惰性好，外观厚重。
　　加厚水道，承压高，运行安全可靠。
　　双翼散热结构，接触热阻低，散热翼之间形成烟囱效应空气对流通道，散热效率高，散热量大。

Rectangular water room, heavy flow of hot medium, low water resistance, thermal inertia, heavy appearance.
　　Thickening of waterways, high-pressure, safe and reliable operation.
　　Wings cooling structure, low contact resistance, air convection channels of thermal chimney effect between wins, cooling efficiency, cooling capacity.

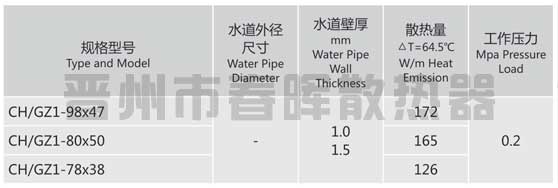

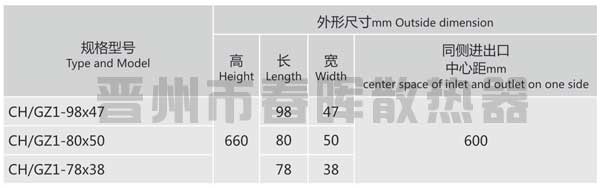

主要技术参数 The technical parameters

注：表中数据供参考使用。每组散热器预留四个接口，设计时不需要考虑进出水方向，接口尺寸25、32。水道壁厚在表中范围内与用户共同确定。
　　Remarks： reserved four joints for each set of radiator (inlet and outlet), never mind the direction of installation. Size of the joint pipe is DN25 DN32.
