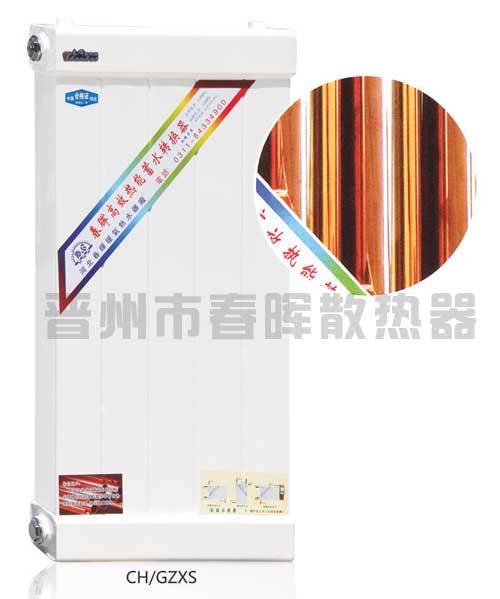

CH/GZXS 钢制蓄水交换器

CH/GZXS 钢制蓄水交换器
CH/GZXS steel storage exchanger

（独一无二 品质超群）



产品特点：
　　采用纯紫铜自来水仓，无需做任何防腐及镀锌等有害物质的表面处理，保证健康用水。

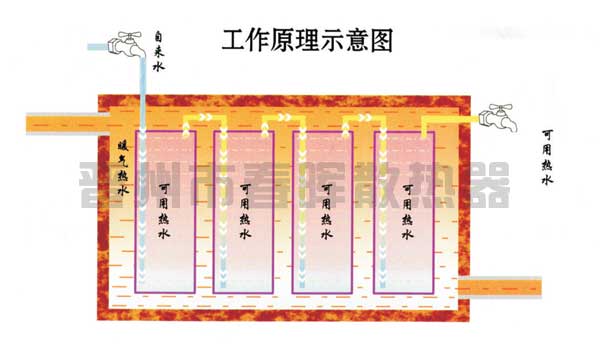

　　出厂前经水压检验，抗腐蚀，无污染，安全可靠，经久耐用。只要有集中供热或地暖均可安装。安装十分简单，将自来水管和暖气管出口连接，就可放出自来水同等压力，与暖气同等温度的热水，让您随时都能方便的使用。

Using pure copper wate bin, do not need any corrosion and surface treatment of zinc and other harmful substances, to ensure the healthy water.
　　Factry after hydrostatic test, corrosion resistance, no pollution, safe and reliable, durable. As long as there is central heating or heating can be installed. The installation is very simple, the tap water pipe and the heating pipe import and export connection, can be released, tap the same pressure, and heating the same temperature hot water, so you can use all the time.

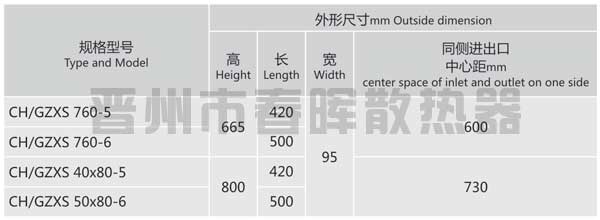

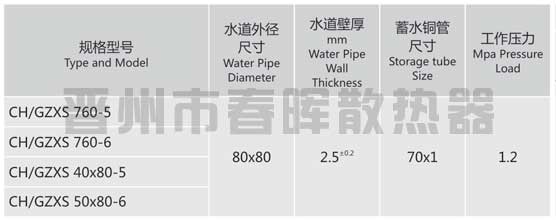

主要技术参数 The technical parameters

注：表中数据供参考使用。每组散热器预留六个接口，设计时不需要考虑进出水方向，接口尺寸25、32。水道壁厚在表中范围内与用户共同确定。
　　Remarks： reserved six joints for each set of radiator (inlet and outlet), never mind the direction of installation. Size of the joint pipe is DN25 DN32.
