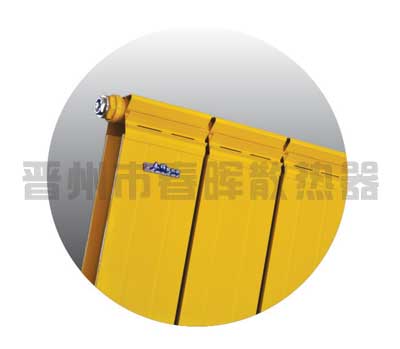

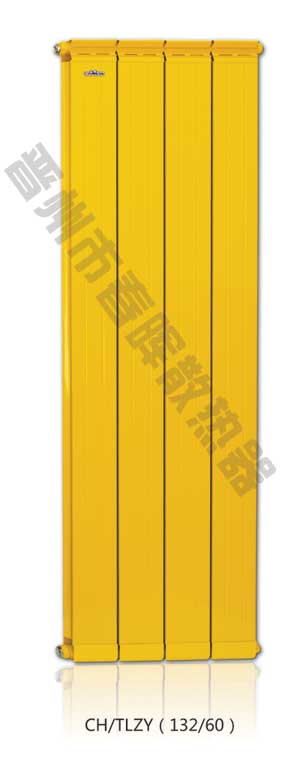

CH/TLZY(132/60)铜铝柱翼散热器
CH/TLZY(132/60)of copper aluminum column wing radiator
(精工细作 值得依赖)
产品特点:
矩形水室,热媒流量大,水阻低,热惰性好,外观厚重。
加厚水道,承压高,运行安全可靠。
双翼散热结构,接触热阻低,散热翼之间形成烟囱效应空气对流通道,散热效率高,散热量大。
Rectangular water room,heavy flow of hot medium,low water resistance,thermal inertia, heavy appearance.
Thickening of waterways,high-pressure, safe and reliable operation.
Wings cooling structure, low contact resistance, air convection channels of thermal chimney effact between wings, cooling efficiency, cooling capacity.

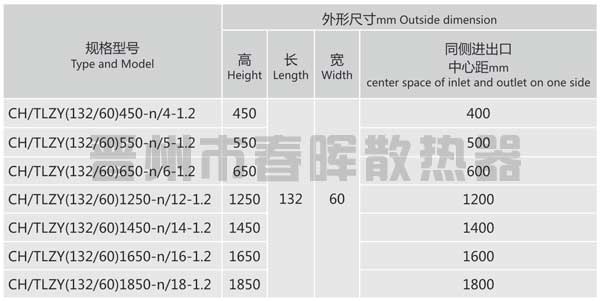

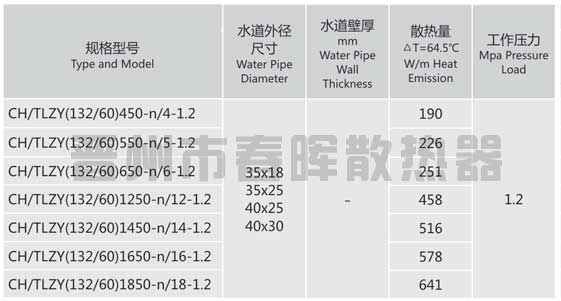

主要技术参数 The technical parameters
注:表中数据供参考使用。每组散热器预留四个接口,设计时不需要考虑进出水方向,接口尺寸20、25。水道壁厚在表中范围内与用户共同确定。
Remarks: reserved four joints for each set of radiator (inlet and outlet), never mind the direction of installation. Size of the joint pipe is DN20 and DN25.
