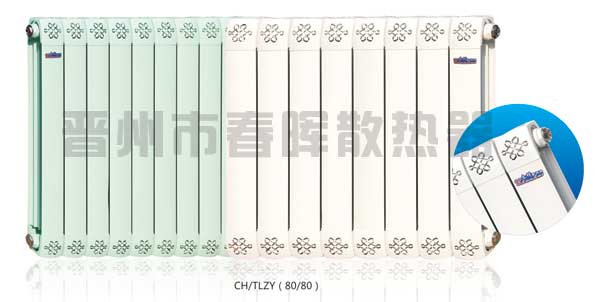

CH/TLZY（80/80）铜铝柱翼散热器
CH/TLZY（80/80）of copper aluminum column wing radiator
产品特点：
矩形水室，热媒流量大，水阻低，热惰性好，外观厚重。
加厚水道，承压高，运行安全可靠。
双翼散热结构，接触热阻低，散热翼之间形成烟囱效应空气对流通道，散热效率高，散热量大。
Rectangular water room,heavy flow of hot medium,low water resistance,thermal inertia, heavy appearance.
Thickening of waterways,high-pressure, safe and reliable operation.
Wings cooling structure, low contact resistance, air convection channels of thermal chimney effact between wings, cooling efficiency, cooling capacity.

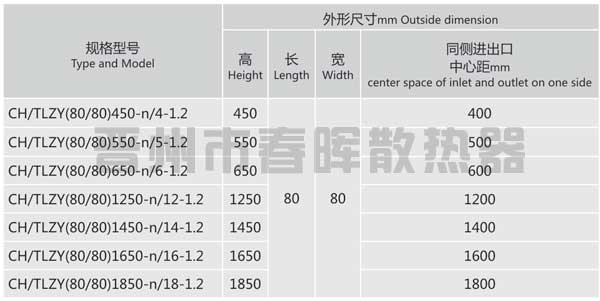

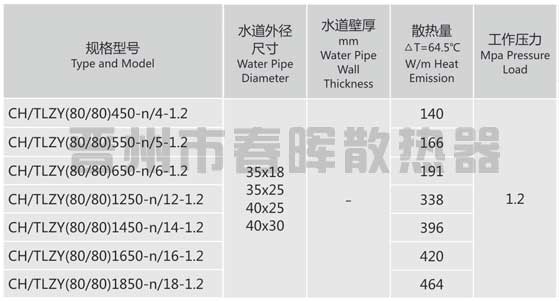

主要技术参数 The technical parameters
注：表中数据供参考使用。每组散热器预留四个接口，设计时不需要考虑进出水方向，接口尺寸20、25。水道壁厚在表中范围内与用户共同确定。
Remarks： reserved four joints for each set of radiator (inlet and outlet), never mind the direction of installation. Size of the joint pipe is DN20 and DN25.
